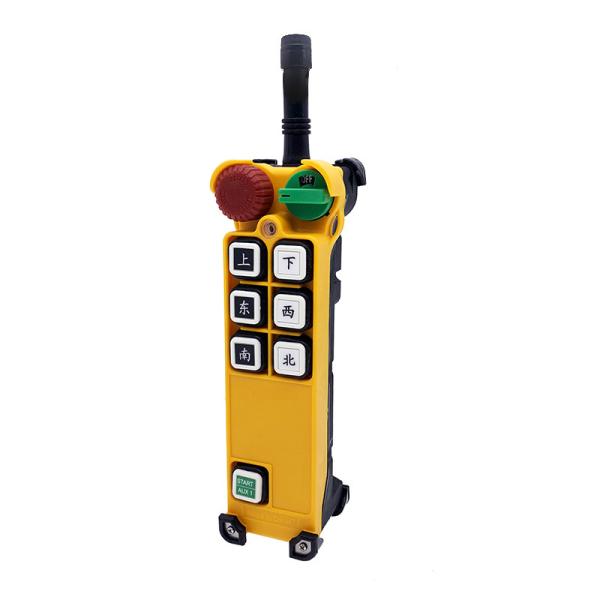

F24-6D Industrial Overhead Crane Telecrane Wireless Remote Control
F24-6D Telecrane 6 Button 2 Speed Factory Wireless Crane Remote Control Industrial Remote Control
Product Features
1. With ratio module,analog signals can be output (additional costs). Ratio output: standard 0-10V
2. 2 five steps of 10 million times mechanical life Pure proportion joystick without fault of poor contact
3. 6 function keys
4. three positions/tow positions rotating switches
5. Light weight and neck hanging design for Asian ergonomics
6. With 3 steps battery voltage alarm device, the power is cut off during low power
7. Safety key switch
8. Enhanced watch-dog circuit with automatically stop device
9. Signal search and frequency automatic tracking circuit
10. Prevent power from sudden breaking
11. Programmable relays outputs
12. 3 super heterodyne receiving circuits
13. LED and indicator outputs
14. Variety functions and parameters can be set by computer interface
15. Setting free up to users requirements
Product Parameter
| Transmitter Parameters: F24. -TX |
| Material | Glass-Fiber PA |
| Enclosure protection class | IP65 |
| Frequency range | VHF: 310~331 MHz; UHF: 425~446MHz |
| Transmitter power | ≤10dBm |
| Transmitter power supply | 2 AA batteries |
| Safety code | 32 bits (4.3 billion) |
| Temperature range | - 40℃~+85℃ |
| Control distance | Approx 100m (200 meters is customized) |
| Receiver Parameters: F24-RXC |
| Material | Glass -Fiber PA |
| Enclosure protection class | IP65 |
| Frequency range | VHF: 310~331MHz; UHF: 425~446MHz |
| Receiver sensitivity | -110dBm |
| Receiver power supply | 18~65V AC/DC / 65~440V AC/DC ( optional ) |
| Output contactor capacity | 8A sealed relay output (with AC 250V/10A relays, 10A fuse) |
| Control distance | Approx 100m (200 meters is customized) |
| Safety code | 32 bits (4.3 billion) |
| Temperature range | - 40℃~+85℃ |
